About the Microwave/RF Assembly Calculator

Aside from rigorously testing and qualifying our products, Gore also provides a lot of detail about them to ensure you make the best decision for your application. Aside from our Microwave/RF Assembly Builder tool, the Microwave/RF Assembly Calculator allows you to explore the parameters of the following:

Defense Aircraft
Civil Aircraft
Spaceflight
Military Land Systems
Test & Measurement
Semiconductor & Microelectronics

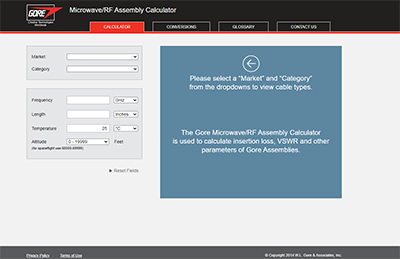

Using the GORE® Microwave/RF Assembly Calculator

You can navigate the calculator through its tabs as follows:

You'll be greeted with two drop-down menus, where you’ll input the following information to reveal suitable cable types:

  • Market
  • Category
  • Frequency (GHz or MHz)
  • Length
  • Temperature
  • Altitude

Under this tab, you’ll find several calculators to help you compute conversions of the following:

  • Distance
  • Frequency
  • Power
  • Temperature
  • Time
  • VSWR
  • Weight

The tool's glossary contains clear definitions of words and terms used by Gore to describe our solutions. These include:

  • Armored
  • Center conductor
  • Connectors
  • Insertion loss
  • Network analyzer
  • Ruggedized and phase stability

If you need assistance or more information, the last tab in the calculator provides contact information for Gore’s locations in North America, the United Kingdom and Germany, as well as our sales offices across Europe and Asia. You can also fill out a short form to be contacted by a Gore representative.

Learn More by Contacting Gore Today

Gore’s cable assemblies offer proven performance confirmed by our testing and prequalification processes, which enable us to ensure their electrical and mechanical integrity over the life of your system. To learn more about our solutions or to discuss the parameters of your specific application further, contact a Gore representative today. If you’re ready to place an order, reach out to Gore specialist directly or one of our authorized distributors.
